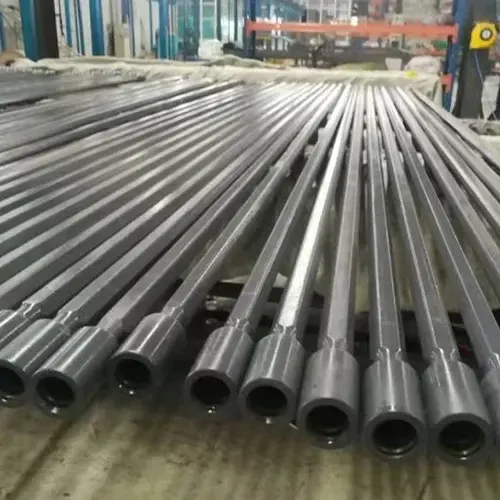

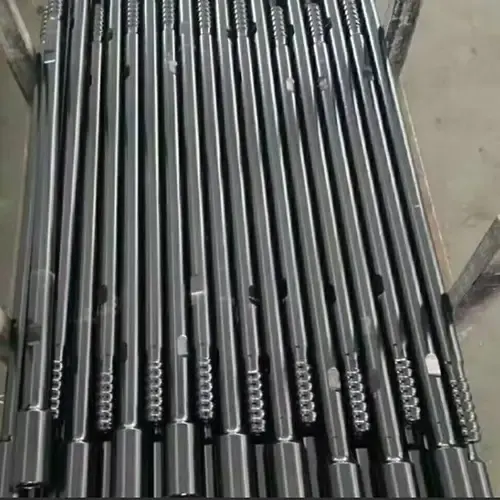

Tiges de Forage pour Marteau Hors Trou
- Plage de diamètre : 28–60 mm
- Types de filetage : filetage R, filetage T, filetage S
- Matériau : acier allié à teneur moyenne en carbone
Formulaire de demande
Applications typiques

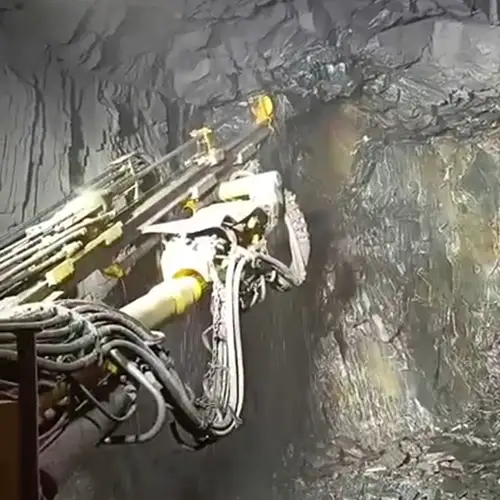

Tiges de forage pour mines souterraines :
Conçues pour être utilisées avec des perforatrices pneumatiques sur rail et des foreuses hydrauliques souterraines entièrement hydrauliques, ces tiges sont largement utilisées pour le forage de production en mine souterraine, les trous de mine de profondeur moyenne, ainsi que les trous de boulonnage et de soutènement.

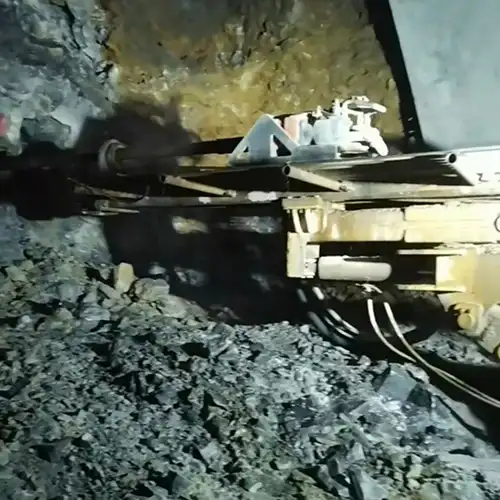

Tiges de forage pour creusement et avancement de tunnels :
Associées à des jumbos hydrauliques de tunneling, ces tiges sont utilisées pour l’avancement et le tir de mines dans les grandes mines métalliques souterraines, les tunnels ferroviaires et autoroutiers, les galeries de dérivation hydroélectriques et les excavations de centrales souterraines.
Spécifications techniques

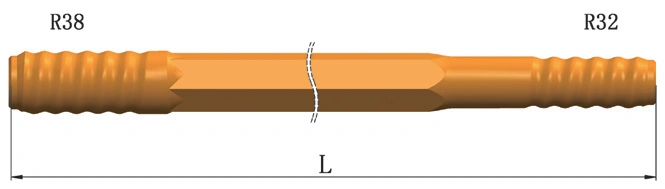

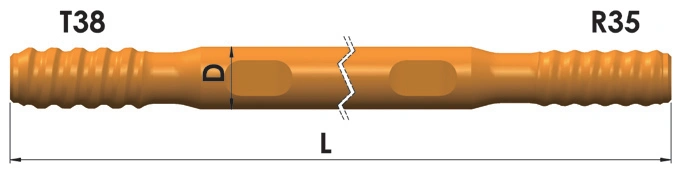

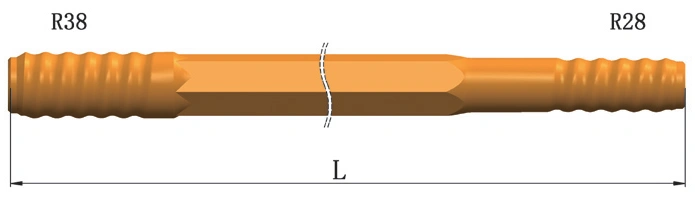

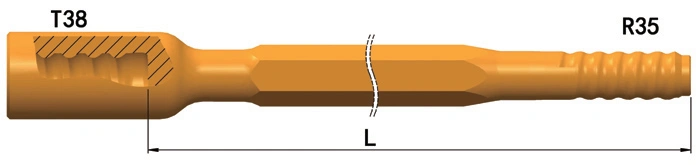

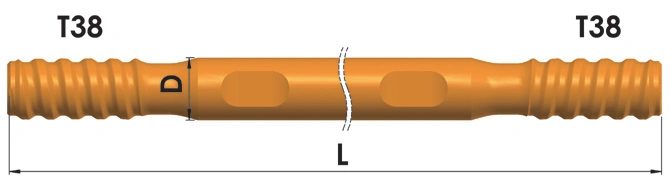

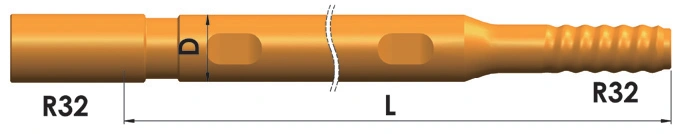

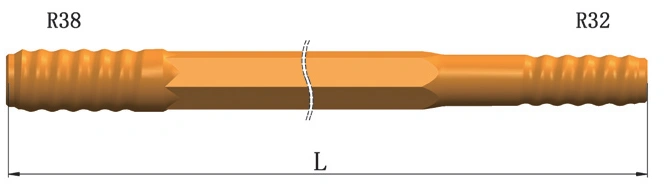

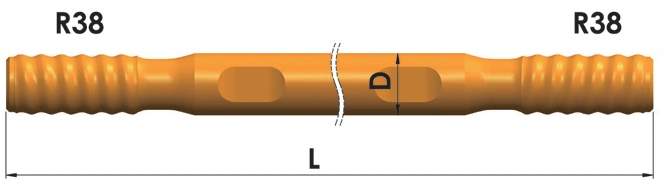

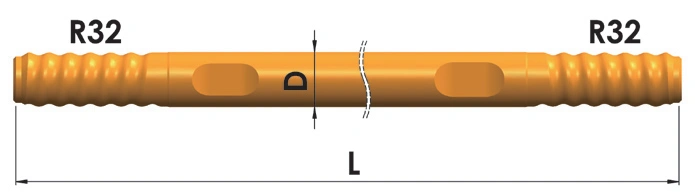

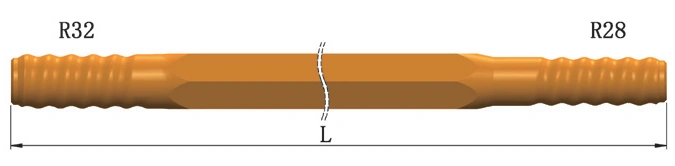

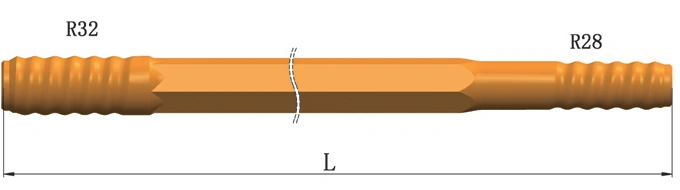

Tiges de forage pour mines souterraines

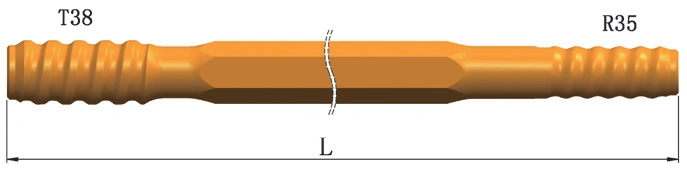

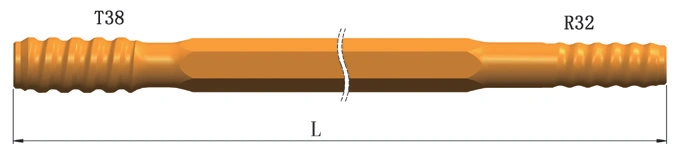

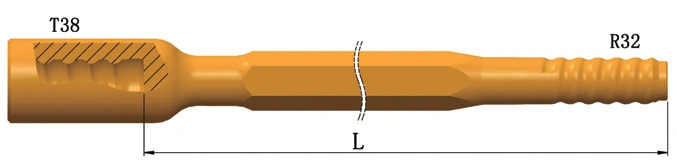

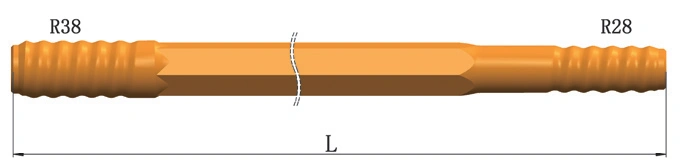

| Tige de perforation | Longueur de la tige | Dimension hexagonale | Poids, kg | ||
| mm | pied-pouce | mm | pouce | ||
 |
2600 | 8'6 3/8" | 28 | 1 1/8" | 13 |
| 3090 | 10'1 5/8" | 28 | 1 1/8" | 15.9 | |
| 3700 | 12'1 5/8" | 28 | 1 1/8" | 18.5 | |
| 4005 | 13'1 43/64" | 28 | 1 1/8" | 20.5 | |
| 4265 | 13'11 1/2" | 28 | 1 1/8" | 21.3 | |
| 4305 | 14'1 31/64" | 28 | 1 1/8" | 21.5 | |
 |
3700 | 12'1 1/2" | 28 | 1 1/8" | 18.5 |
| 4305 | 14'1 31/64" | 28 | 1 1/8" | 21.5 | |
 |
3090 | 10'1 5/8" | 32 | 1 1/4" | 19.6 |
 |
3090 | 10'1 21/32" | 32 | 1 1/4" | 19.7 |
| 3700 | 12'1 1/2" | 32 | 1 1/4" | 23.6 | |
| 4305 | 14'1 31/64" | 32 | 1 1/4" | 27.3 | |
 |
3090 | 10'1 5/8" | 35 | 1 5/8" | 24 |
| 3700 | 12'1 1/2" | 35 | 1 5/8" | 28.7 | |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 33.7 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.2 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.1 | |
 |
3700 | 12'1 1/2" | 35 | 1 5/8" | 29.4 |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 34.4 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.9 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.8 | |
 |
3090 | 10'1 5/8" | 35 | 1 5/8" | 23.9 |
| 3700 | 12'1 1/2" | 35 | 1 5/8" | 28.6 | |
| 4305 | 14'1 31/64" | 35 | 1 5/8" | 33.6 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 38.3 | |
| 5525 | 18'1 33/64" | 35 | 1 5/8" | 43.2 | |
| 6135 | 20'1 1/2" | 35 | 1 5/8" | 47.9 | |
 |
3700 | 12'1 1/2" | 32 | 1 5/8" | 23.6 |
| 4305 | 14'1 31/64" | 32 | 1 5/8" | 27.5 | |
| 4915 | 16'1 1/2" | 35 | 1 5/8" | 31.4 | |
 |
3700 | 12'1 1/2" | 32 | 1 5/8" | 23.6 |
| 4305 | 14'1 31/64" | 32 | 1 5/8" | 27.5 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 33.8 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 38.4 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 43.3 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 48 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 34 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 38.6 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 43.5 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 48.2 | |
 |
4305 | 14'1 31/64" | 35 | 1 3/8" | 34.2 |
| 4915 | 16'1 1/2" | 35 | 1 3/8" | 39.2 | |
| 5525 | 18'1 33/64" | 35 | 1 3/8" | 44.3 | |
| 6135 | 20'1 1/2" | 35 | 1 3/8" | 49.3 | |

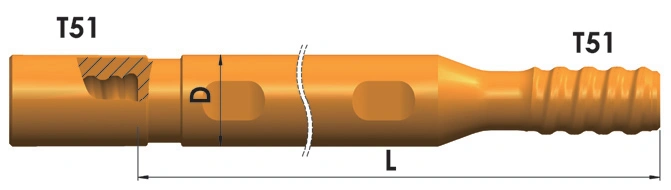

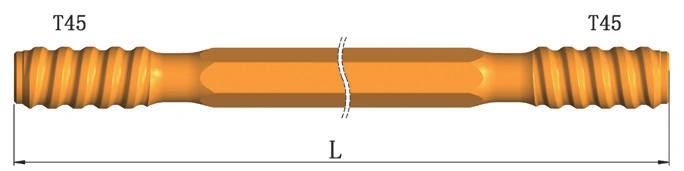

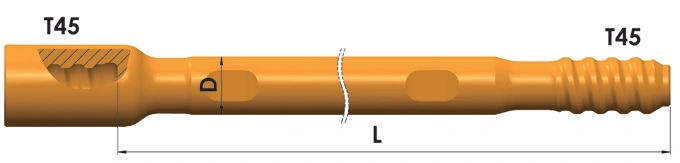

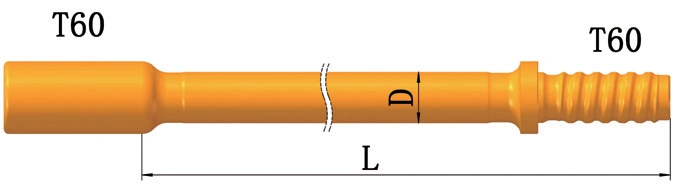

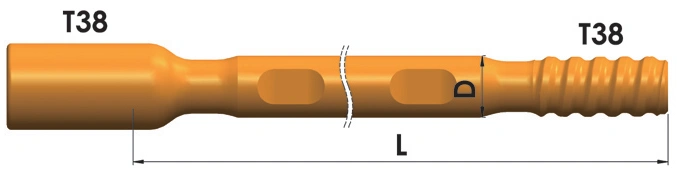

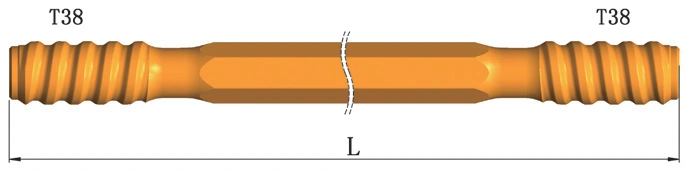

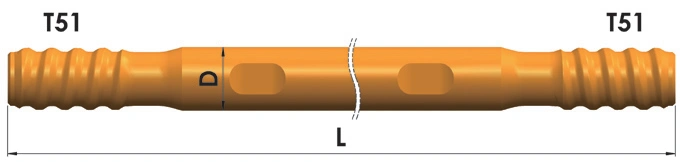

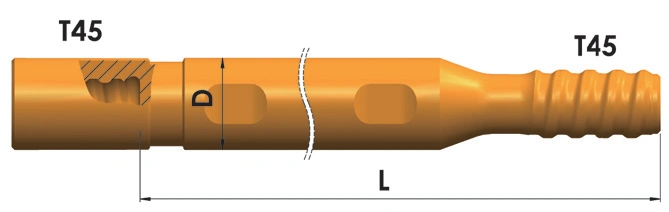

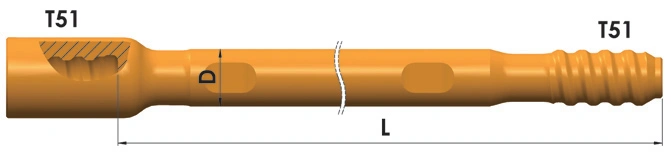

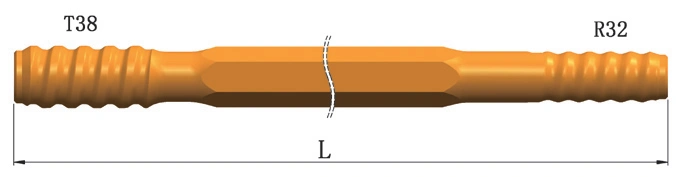

Tiges de forage pour creusement et avancement de tunnels

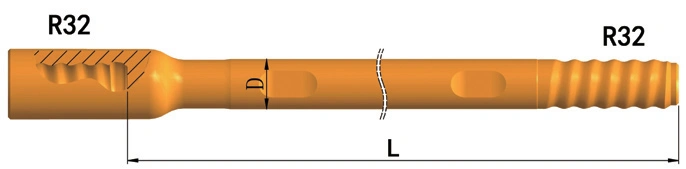

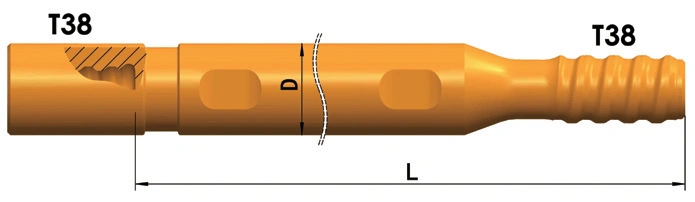

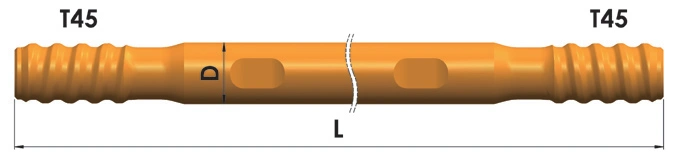

| Tige de perforation | Longueur de la tige | Dimension hexagonale | Poids, kg | ||
| mm | pied-pouce | mm | pouce | ||
 |
2435 | 8" | 32 | 1 1/4" | 13.2 |
| 3050 | 10" | 32 | 1 1/4" | 16.6 | |
| 3660 | 12" | 32 | 1 1/4" | 20 | |
| 4000 | 13'1 1/2" | 32 | 1 1/4" | 21.9 | |
 |
2435 | 8" | 32 | 1 1/4" | 14.6 |
| 3050 | 10" | 32 | 1 1/4" | 18.6 | |
| 3660 | 12" | 32 | 1 1/4" | 21.1 | |
| 4265 | 14" | 32 | 1 1/4" | 25.6 | |
 |
3050 | 10" | 46 | 1 3/4" | 25 |
 |
2435 | 8" | 39 | 1 1/2" | 19.2 |
| 3050 | 10" | 39 | 1 1/2" | 24.3 | |
 |
3050 | 10" | 32 | 1 1/4" | 18.7 |
| 3660 | 12" | 32 | 1 1/4" | 22.4 | |
 |
3050 | 10" | 39 | 1 1/2" | 24.8 |
| 3660 | 12" | 39 | 1 1/2" | 29.8 | |
 |
3050 | 10" | 39 | 1 1/2" | 26.3 |
| 3660 | 12" | 39 | 1 1/2" | 31.5 | |
| 4265 | 14" | 39 | 1 1/2" | 36.9 | |
 |
3050 | 10" | 56 | 2 1/8" | 28.3 |
| 3660 | 12" | 56 | 2 1/8" | 32.8 | |
 |
3050 | 10" | 38 | 1 1/2" | 25.2 |
| 3660 | 12" | 38 | 1 1/2" | 30.4 | |
 |
3050 | 10" | 46 | 1 3/4" | 34 |
| 3660 | 12" | 46 | 1 3/4" | 41 | |
| 4265 | 14" | 46 | 1 3/4" | 47.9 | |
| 6095 | 20" | 46 | 1 3/4" | 68.9 | |
 |
3050 | 10" | 46 | 1 3/4" | 37.6 |
| 3660 | 12" | 46 | 1 3/4" | 43.5 | |
| 4265 | 14" | 46 | 1 3/4" | 51.5 | |
| 5335 | 17'6 1/8" | 46 | 1 3/4" | 61.8 | |
| 6095 | 20" | 46 | 1 3/4" | 70.6 | |
 |
3660 | 12" | 64 | 2 1/2" | 49 |
| 3660 | 12" | 76 | 3" | 77.8 | |
 |
3660 | 12" | 52 | 2" | 50.8 |
| 4265 | 14" | 52 | 2" | 59.5 | |
| 6095 | 20" | 52 | 2" | 85.6 | |
 |
3660 | 12" | 52 | 2" | 53.9 |
| 4265 | 14" | 52 | 2" | 62.6 | |
| 5335 | 17'6 1/8" | 52 | 2" | 77.7 | |
| 6095 | 20" | 52 | 2" | 88.8 | |
 |
3660 | 12" | 76 | 3" | 79.1 |
| 3660 | 12" | 87 | 3 1/2" | 80 | |
 |
3660 | 12" | 60 | 2 3/8" | 73 |
| 4265 | 14" | 60 | 2 3/8" | 82 | |
| 6095 | 20" | 60 | 2 3/8" | 110 | |
